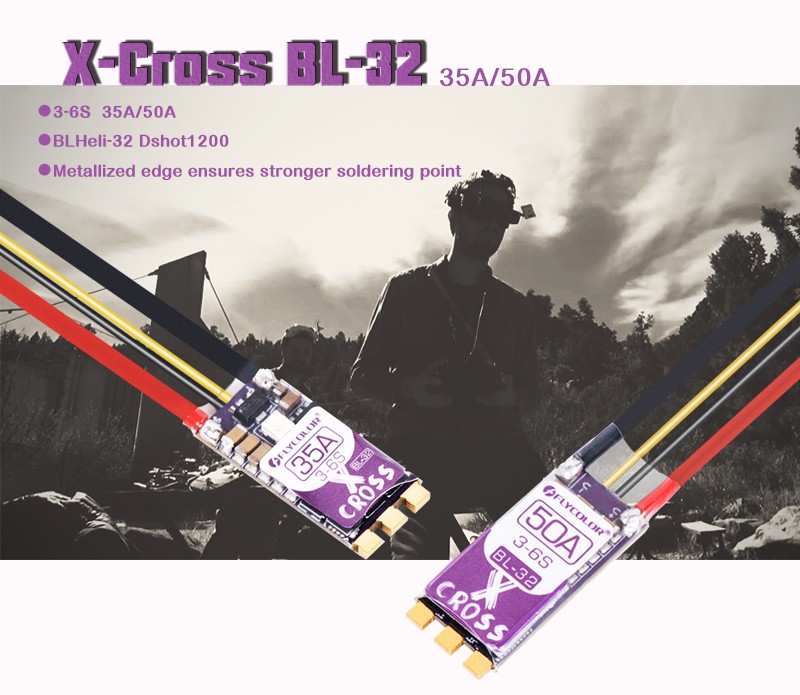

X-Cross BL-32

32 bit firmware, supporting Dshot 1200, faster reponse, less lag.

Buy now
PRODUCT FEATURES

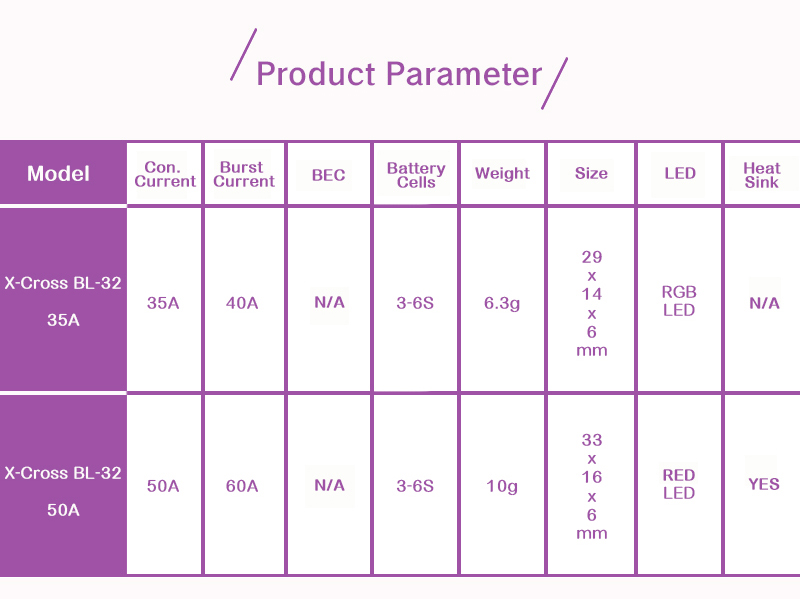

SPECIFICATION
Model
Battery
Con. Current
Burst Current(10S)
BEC
Weight
Size
Firmware
Typical Applications
Product features

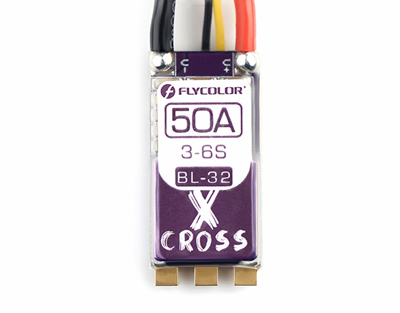

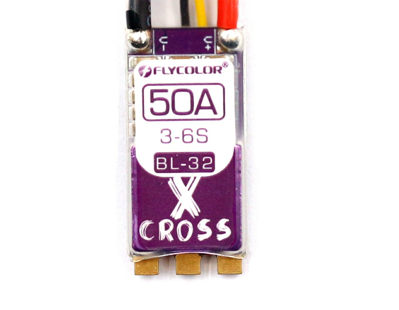

X Cross BL-32 50A

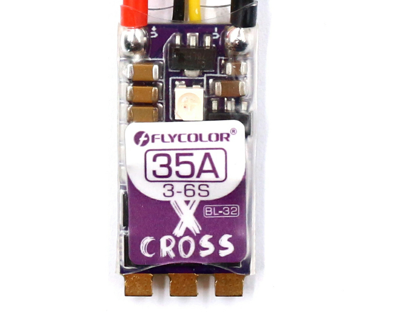

X-Cross BL-32 35A

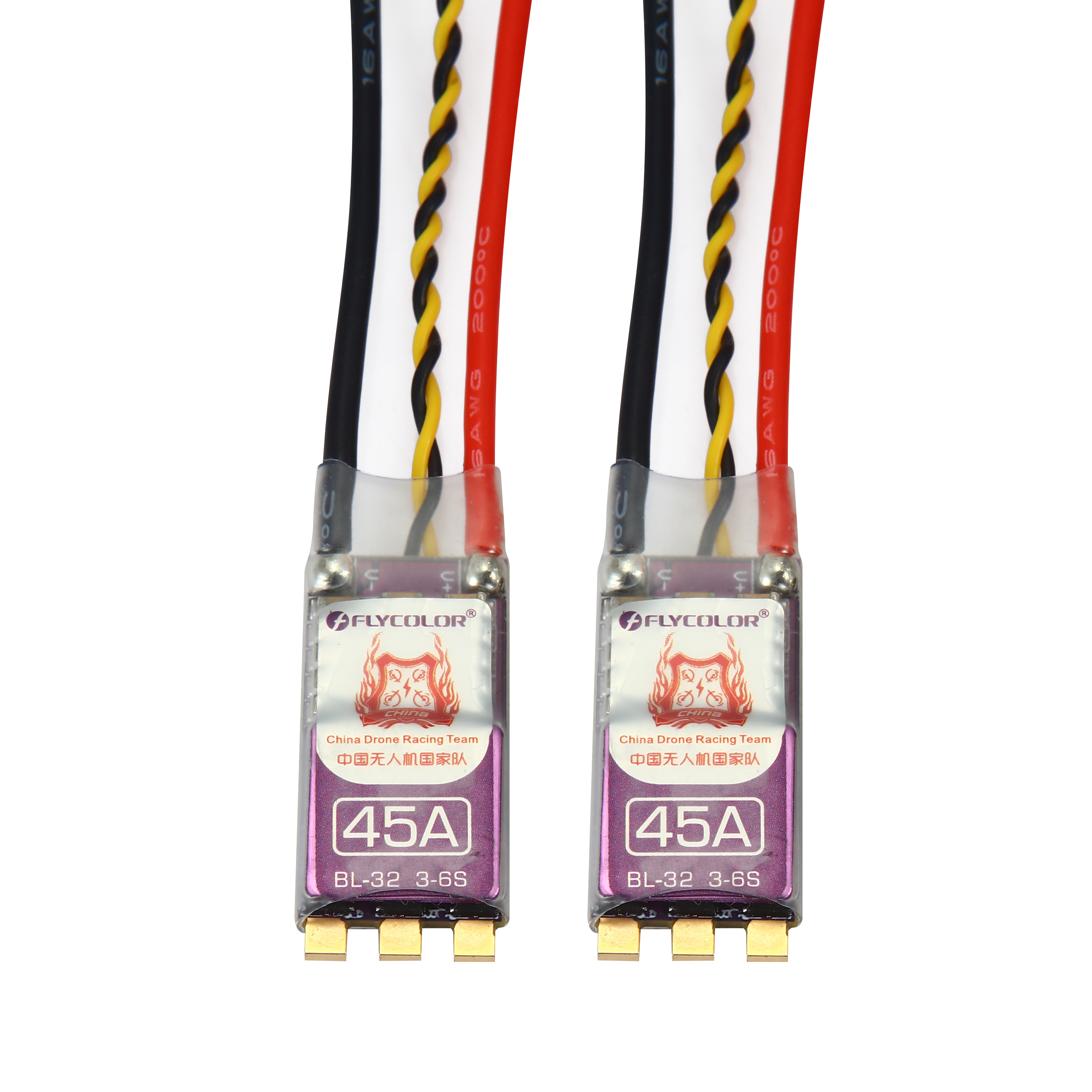

X-Cross BL-32-45A
3-6s
3-6S
3-6S
50S
35A
45A
60A
40A
55A
NO
No
NO
10g
6.3g
10g

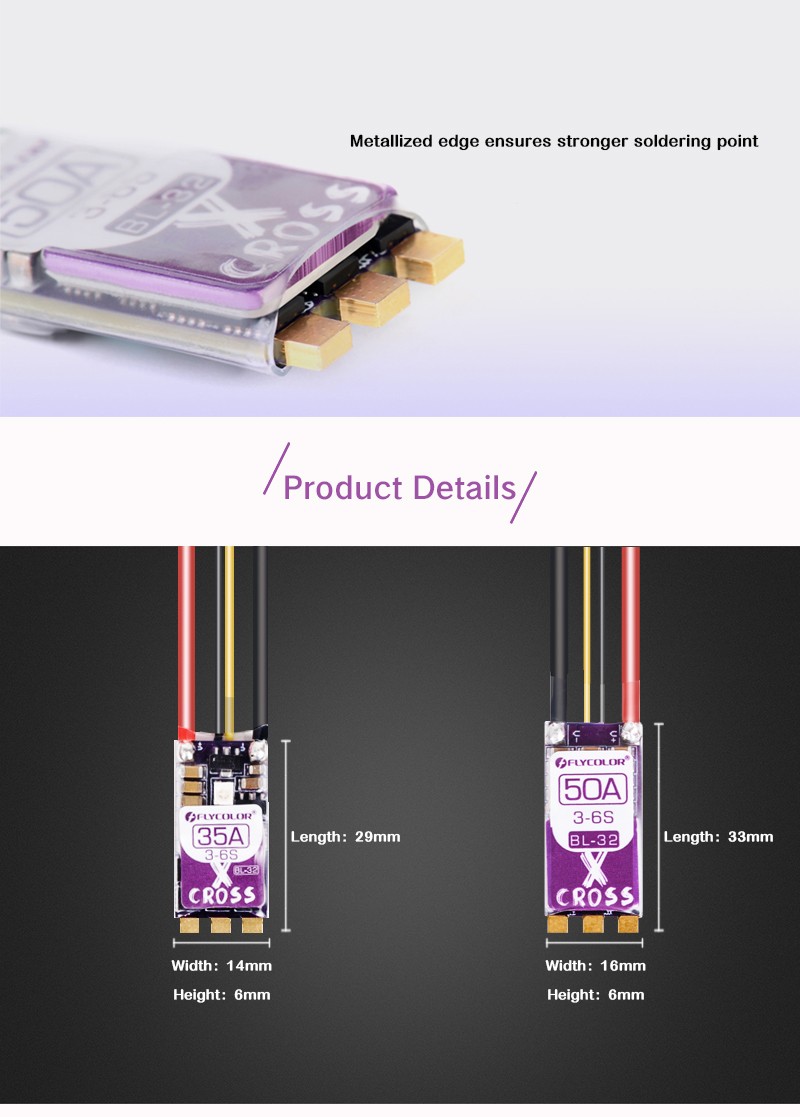

33x16x6mm
29x14x6mm
33x16x6mm
BLHeli-32 Firmware
BLHeli_32
BLHeliSuite32
170-450 Multiple rotor
170-450 multirotor

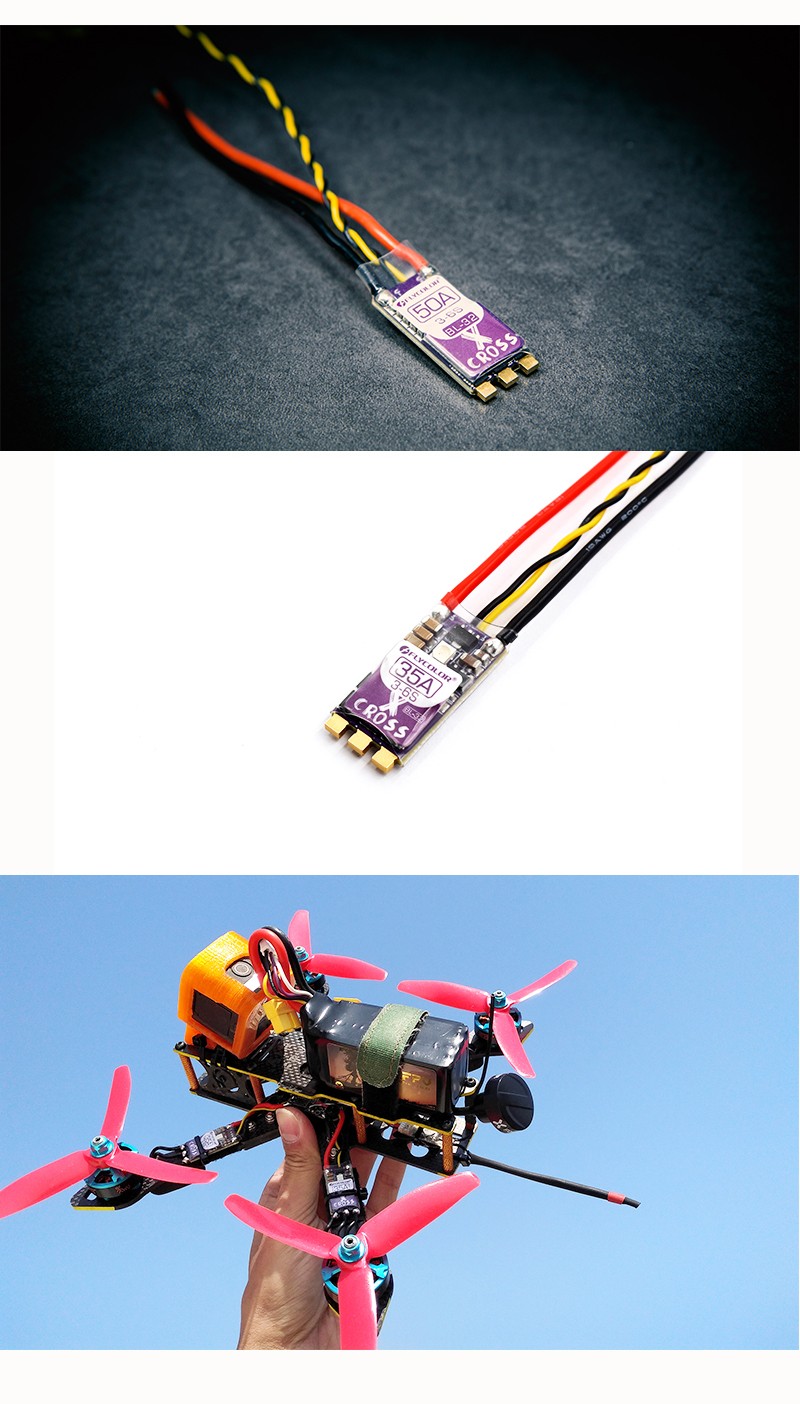

FPV

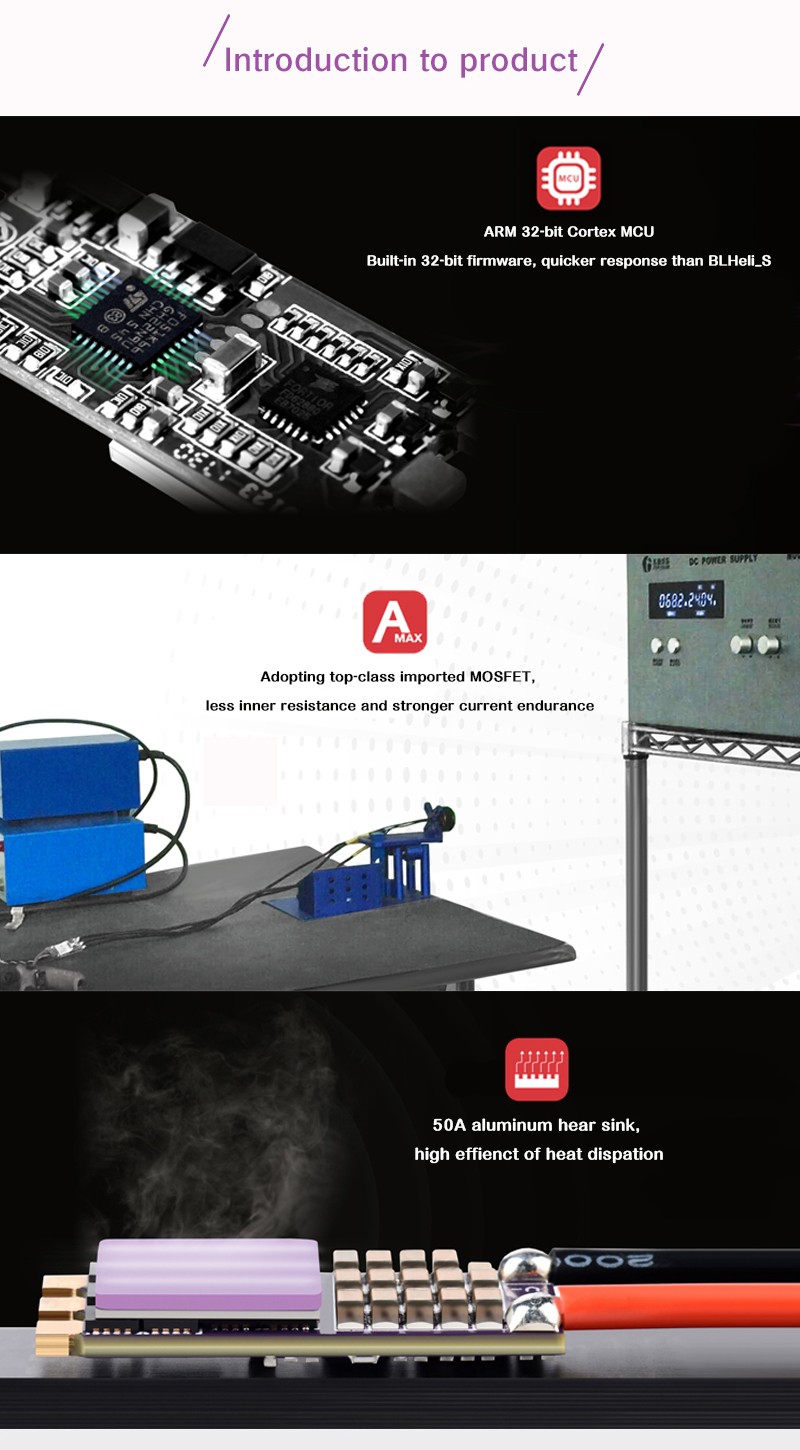

● ARM 32-bit Cortex MCU, frequency up to 48 MHZ.

● BLHeli_32 firmware,which is designed for superior functionality and performance.

● Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and

 Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up.

● Dshot signal is supported at any rate up to at least Dshot1200.

● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active

 freewheeling.

● Supports higher KV motor and more power load, more suitable for violent flight of racing drone .

● The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal

 transmission, and makes flight more stable.

● Aluminum heat sink effectively slow down the temperature rise.
